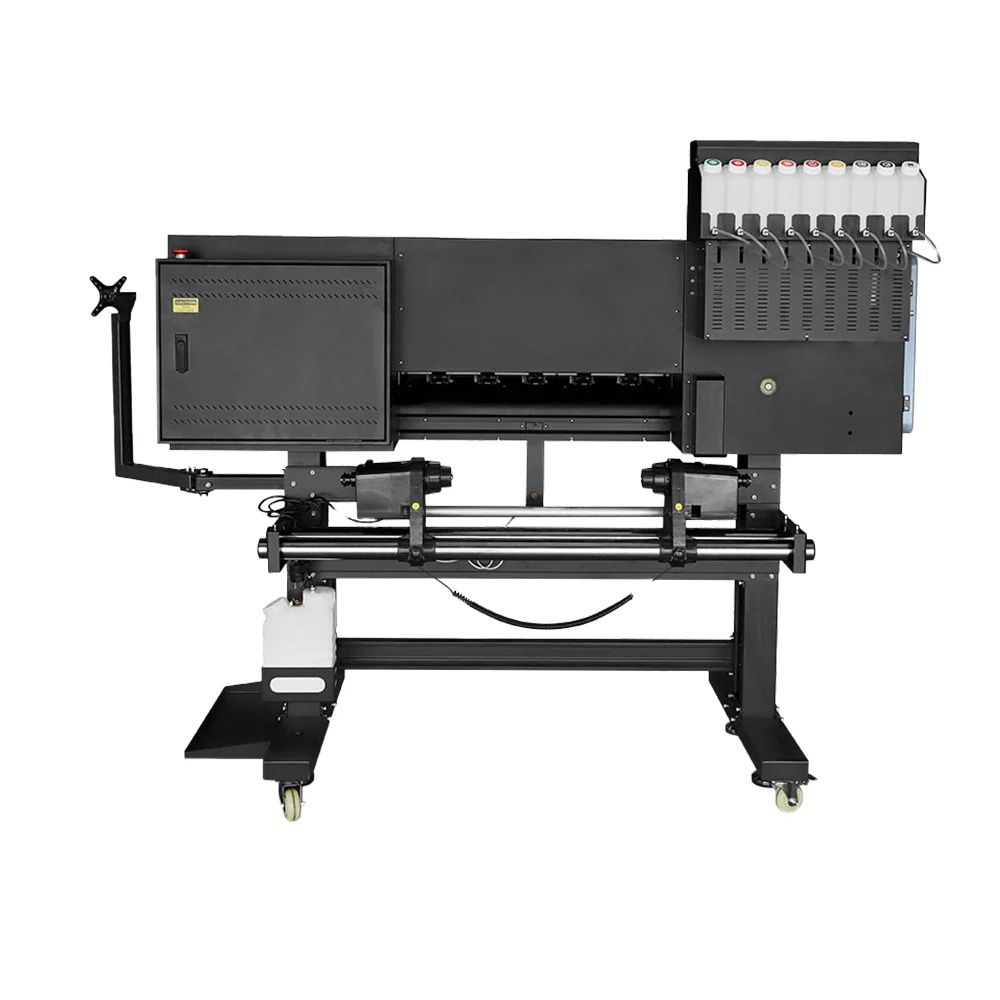

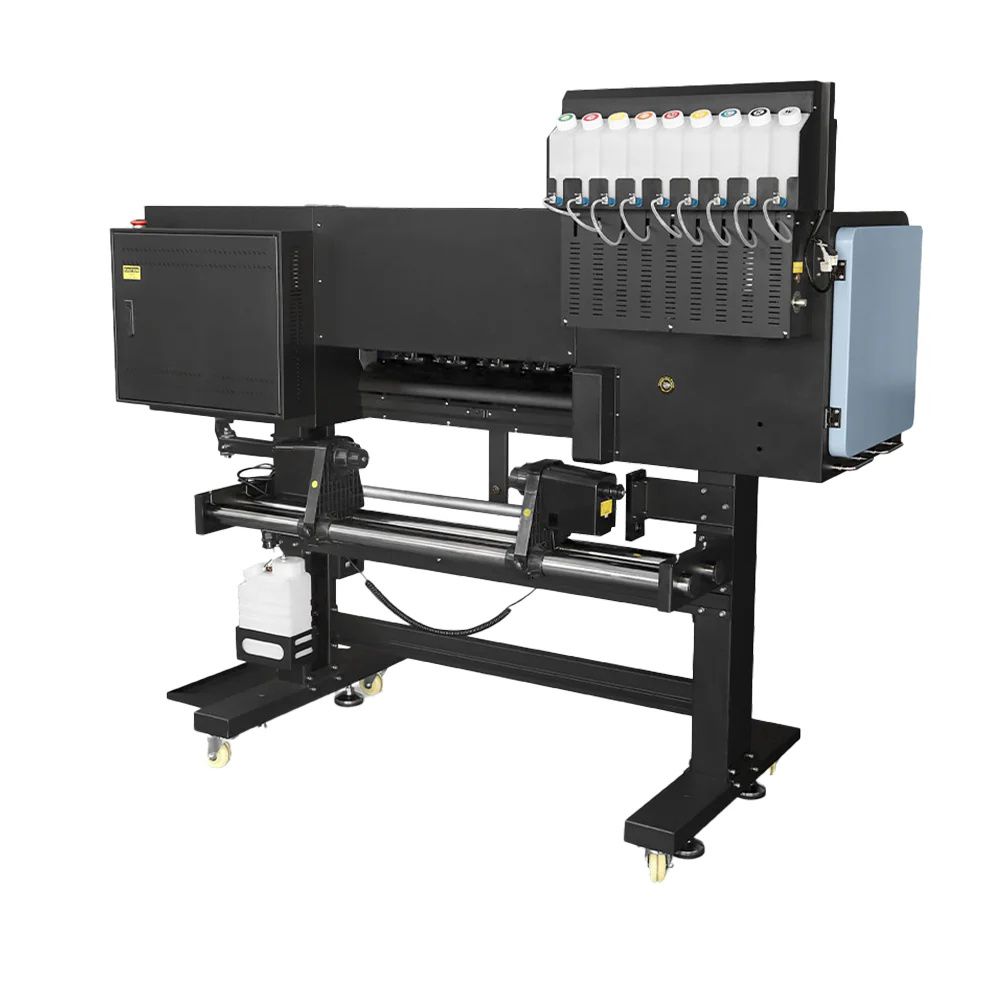

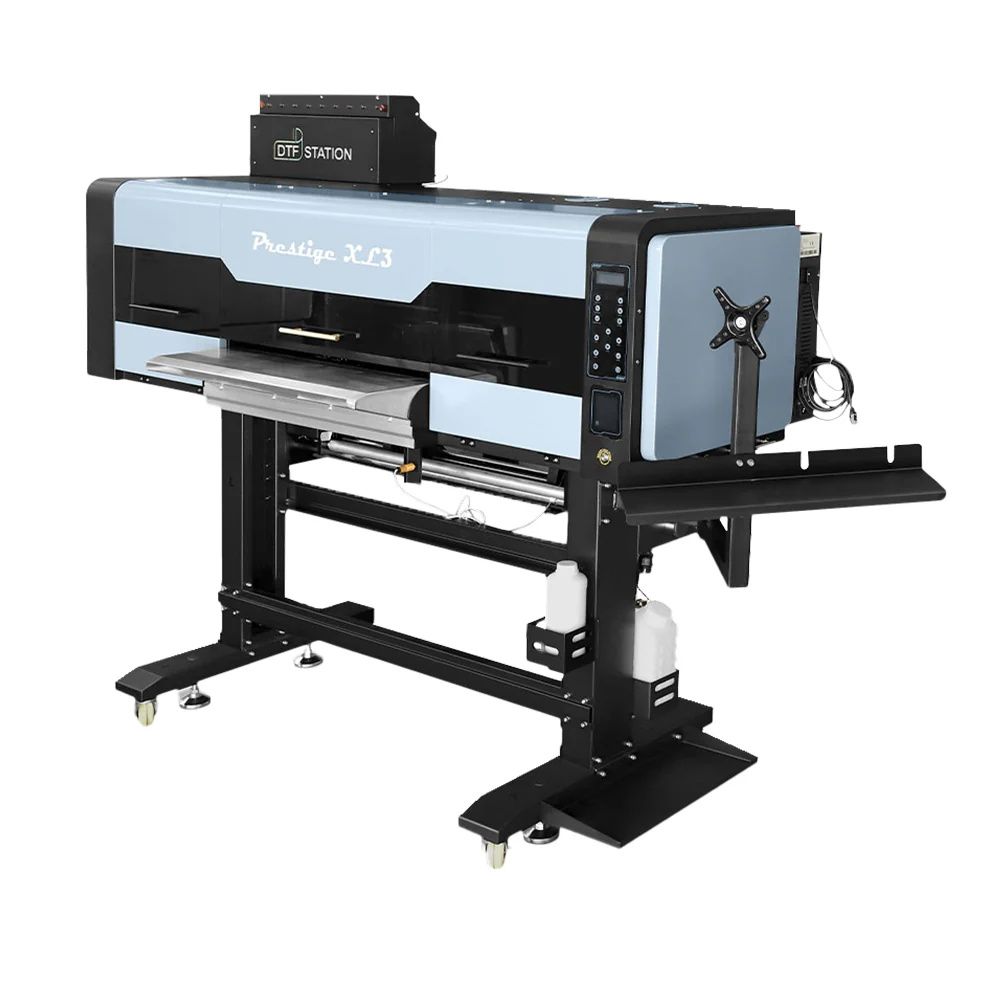

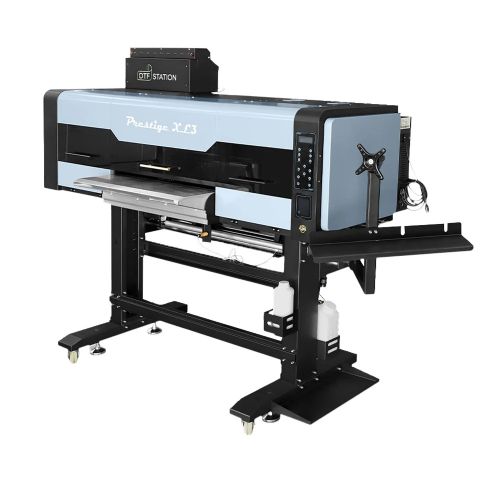

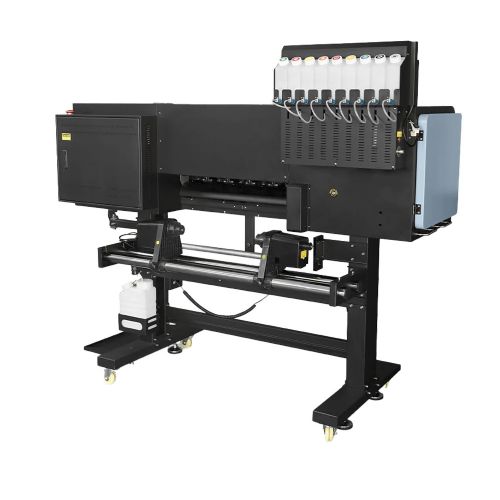

Prestige XL3 24" DTF Printer
Unleash true color with the XL3 DTF Printer, equipped with three advanced Epson i3200 printheads that deliver stunningly vibrant prints with an expanded color range thanks to the addition of Red, Green, Blue, and Orange inks. Designed for high-demand environments, this printer boasts cutting-edge maintenance features like the White Ink Management System and automatic cleaning cycles, ensuring minimal downtime and maximum productivity. Pair the XL3 with DTF Station's line of shakers for one of the most optimal, automated DTF printing workflows around.
ADDITIONAL DETAILSFeatures:- 3 Epson i3200 printheads
- Advanced Maintenance Features:
- White Ink Management System (WIMS): timed white ink stirring system to circulate and maintain white ink inside the printer
- Passive Auto-Cleaning: when the printer is left on, it will automatically maintain and clean the printhead every 4 hours
- Active Auto-Cleaning: during set intervals (even during printing), the printer can stop to clean the printhead

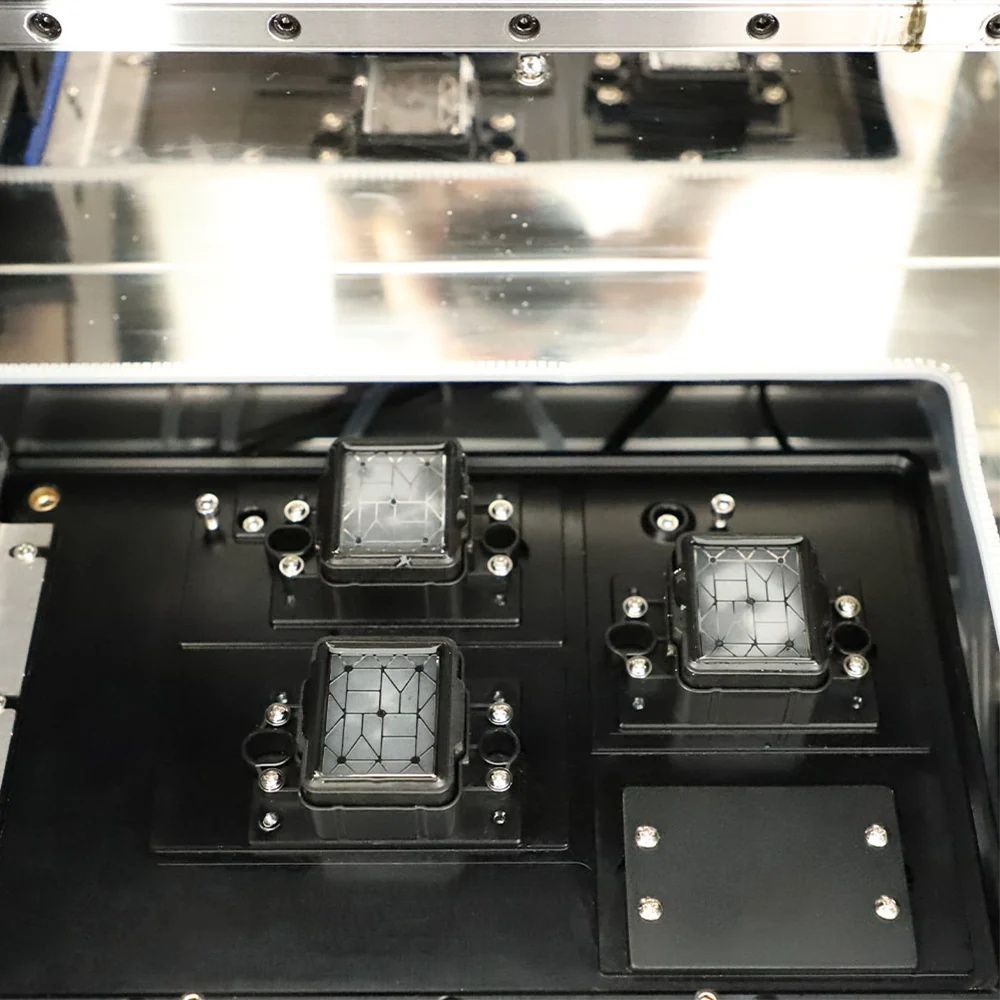

- Auto-Wet Capping: printhead sits inside cleaning solution while idle, helping to prevent clogging - Advanced Sensors:
- Head Strike Sensor: helps prevent damage to the printhead
- Auto Ink Alert System: informs the user when ink is running low
- Automatic Film Sensor: if film runs out/is not detected, stops printing - 1L bulk ink cartridges
- Attachment Station: Perfect for add-ons, such as the Printflo Barcode Automation System
- Variety of adjustable settings including:
- Belt Speed
- Powder Shaking Power
- Cooling

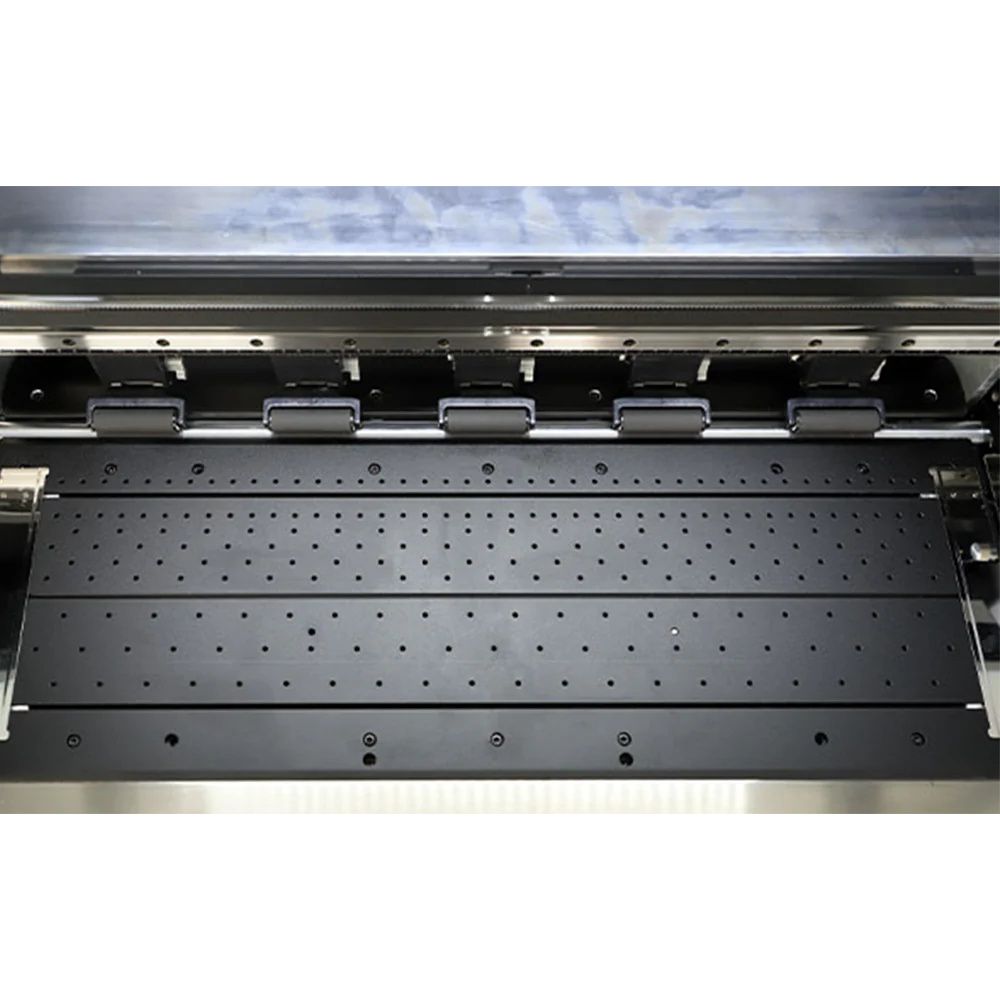

- Suction
Benefits:- More Color, Better Prints: The addition of Red, Green, Blue, and Orange ink makes for more accurate, vibrant prints and a wider possible color range
- Perfect for advanced productions: Get the best DTF prints at industrial speeds
- Advanced maintenance features: The suite of maintenance features on the XL3 ensures less downtime for non-stop production and a longer lifespan for your investment

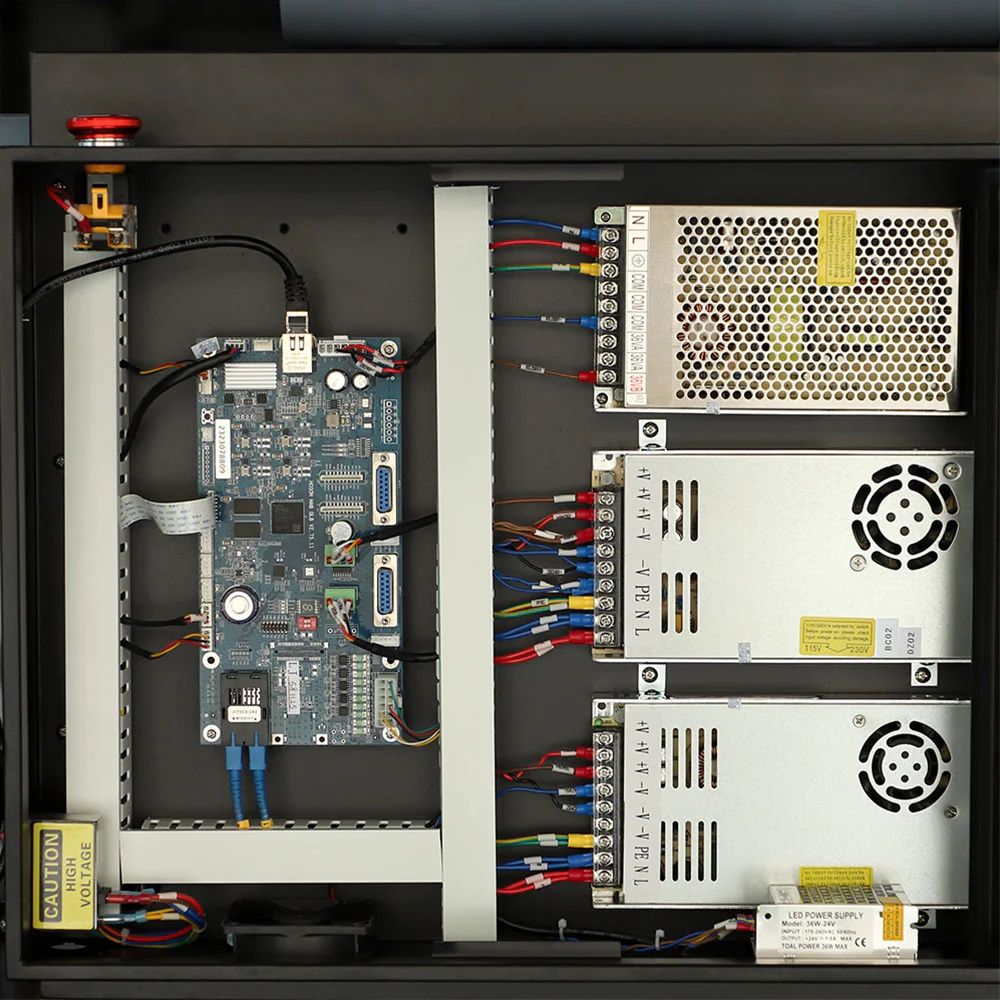

- Easy access/repair: intuitive, labeled board design and connections for easy access and repair
What's Included:- Printer
- Starter Supply Bundle (Film, Ink, and Cleaning Supplies)
- 24” DTF Film Roll x2
- DTF Ink 1kg - CMYK+RGBO 1x Each, White x2
- DTF Powder (White) 1kg - x3
- 7” Cleaning Swabs 50 Pack
- DTF Cleaning Solution 1kg
- Isopropyl Alcohol 16oz
- Lintless Wipe 4” x 4” 30 Pack - On-site Training
- DigiRIP RIP Pro Software - including fully functional Software Trial Version (15-Day Free Trial)
- Conditional 6 Month Warranty on up to 2 Printheads and Limited 1 Year Warranty on Non-Consumable Parts
- Use of non-DTF Station ink, film, powder, or other supplies will void warranty coverage. Must complete on-site training. Other terms and Conditions apply
Parts and Accessories:- USB - Important Resources and Files

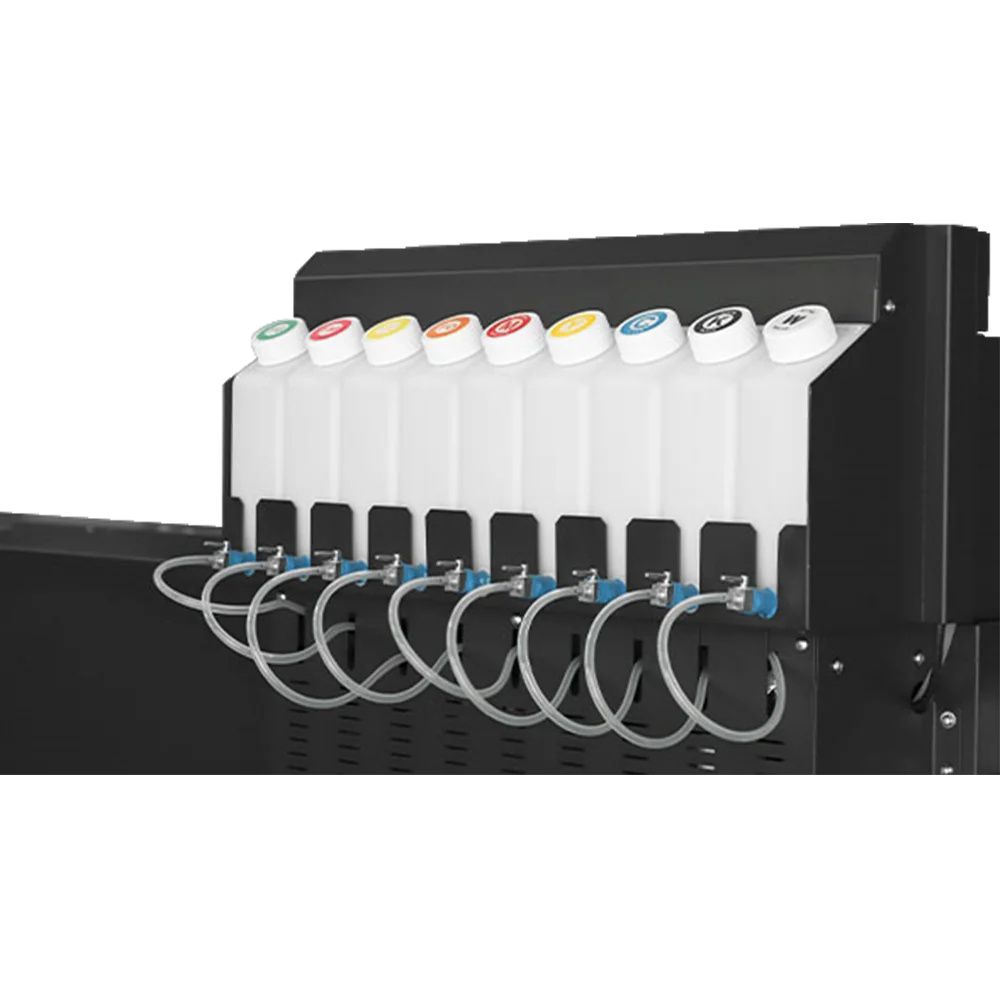

- Ink Reservoir
- Y Shape Connectors
- Ink Filters
- Ink Tube 1m
- Straight Connectors
- Dampers
- M3x8 Screws
- M4x6 Screws
- M3x10 Screws
- M5x10 Screws
- M6x16 Screws
- Magnets
- Printer Panel Key
- Waterproof Tape
- 30ml Syringes
- Printhead Cables
- Power Cord
Specifications:- Printhead: 3 Epson i3200 printheads
- Mainboard: Hoson
- Interface: TCP
- Software: DigiRIP Pro RIP Software (Compatible with Windows Only)
- Max. Film Width: 24" (61 cm)
- Max. Print Width: 23.62" (60 cm)
- Printing Speed: 60 - 80 sq. ft./hour (30-40% Eclosion Setting in Hoson)
- Daily Output: 350 - 500 pcs (Based on 12”x14” design size, 8 hours per day)
- Product Weight: 445 lb
- Packaging Weight: 580 lb
- Dimensions (WxDxH):
- Product: 74.21" x 29.5" x 65.11"
- Packaging: 82.68 " x 38" x 28" - Power Requirements: 1000W, 110V, 9A
Applicable Industries:- Garments
- Tote Bags
- Caps
- Cotton
- Polyester
- PU
- And more!
Compatible With:- DigiRIP RIP Pro Software
- Color Prime DTF Supplies (Ink, Powder, and Film)
- DTF Station Seismo L24R DTF Powder Shaker and Dryer
